SKELETON TRAILER

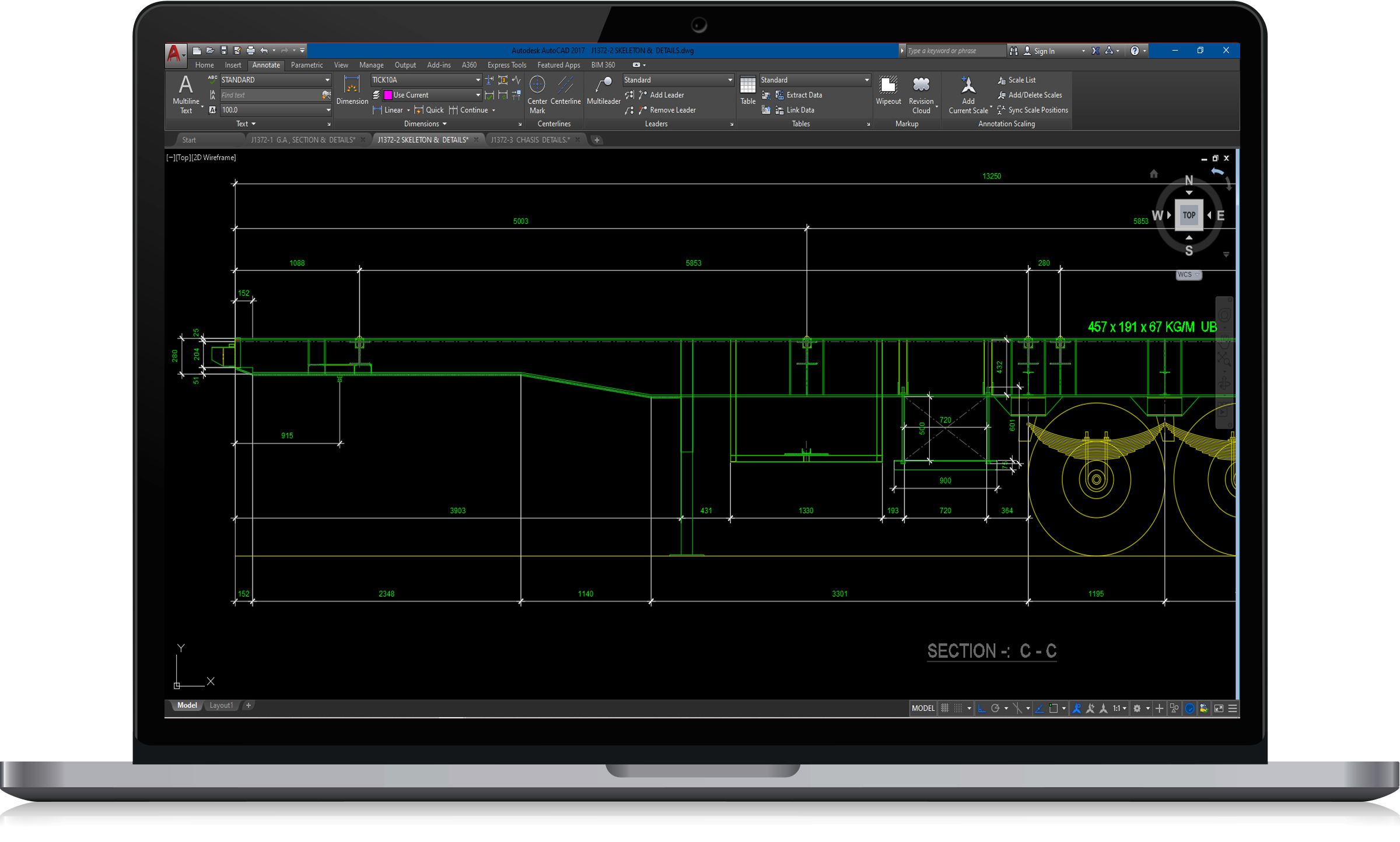

Skeletal Trailers are used for transporting of materials packed in Shipping containers. These trailers are provided with container locks for locking containers to the bed. Overall dimensions, (L x W x H): 12500 x 2500 x 1600mm Functions: Used in transportation of 2x20ft and also 1x40ft containers Loading capacity: 50Ton Axle: 3 x 13Ton King Pin: 3.5” Platform plate: 3mm in thickness. The file contains a full set of detailed drawings which includes general arrangement, single parts and assembly drawings in DWG file format. (AutoCAD Format). The material list included.
