33M TELECOMMUNICATION STEEL TOWER | ROOFTOP MAST | DWG./AutoCAD File

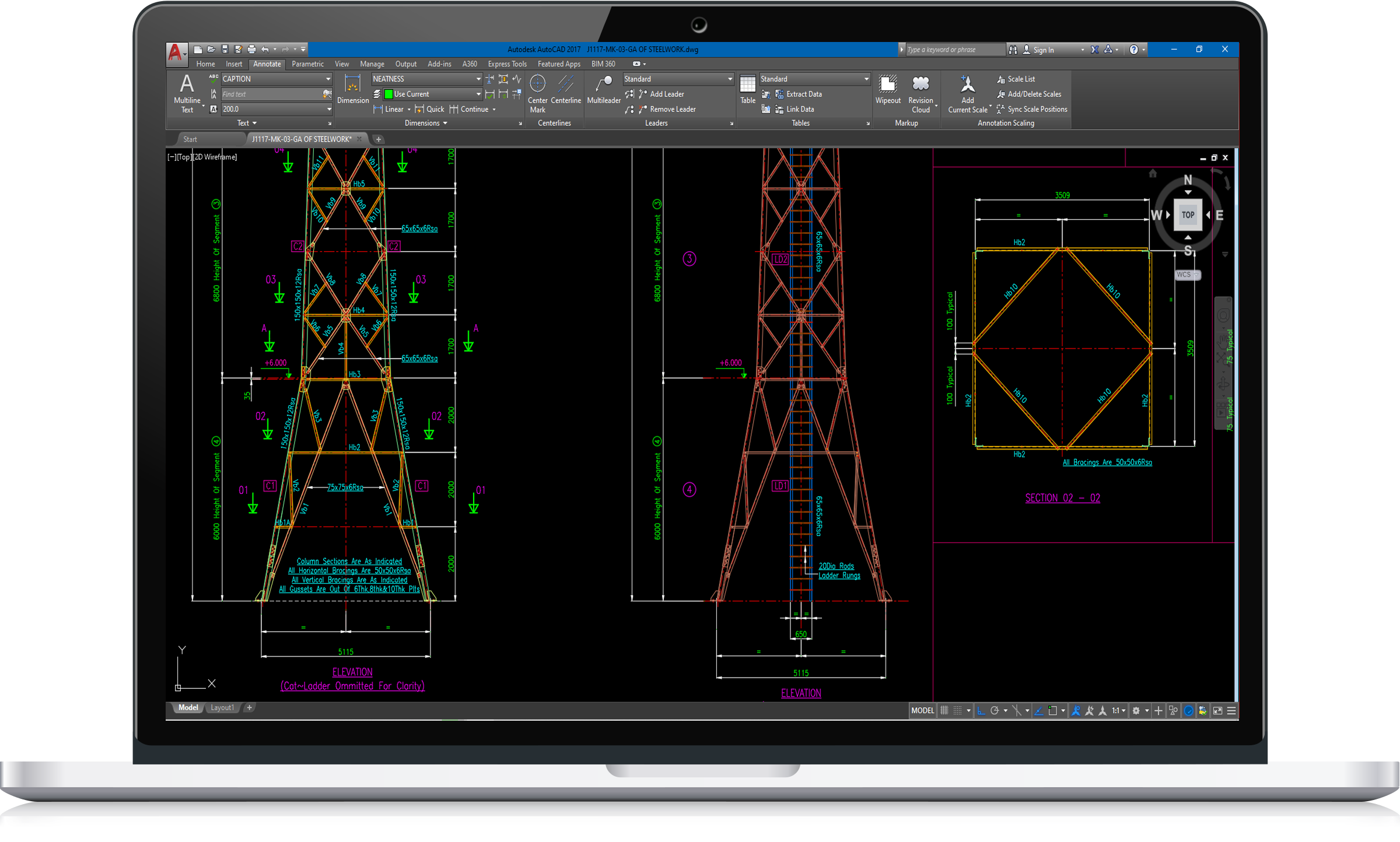

4-Legged lattice triangular mast telecommunication steel tower. Wind: 0 – 330km/h Height: 33.00m Design Code: BS This is a freestanding lattice tower or truss tower. It can be used as electricity transmission towers especially for voltages above 100 kilovolts, as a radio tower (a self-radiating tower or as a carrier for aerials) or as an observation tower. This package contains a full set of detailed drawings which includes general arrangement, single parts and assembly drawings in DWG file format. Packing list, bolt list and material list are part of the set.
