12M ELEVATED STEEL TOWER AND 49.3M³ PRESSED STEEL TANK | DWG./AutoCAD File

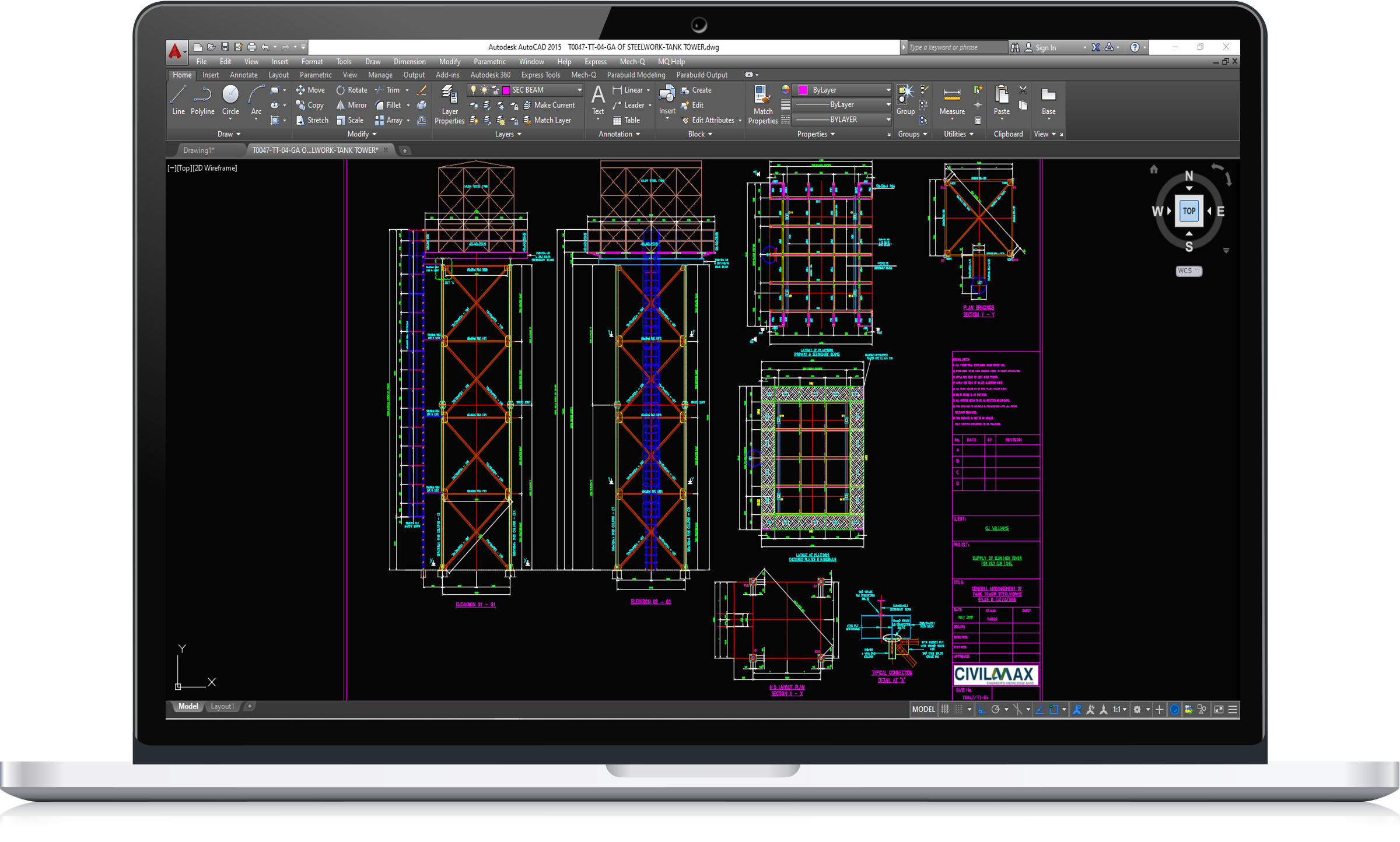

This is a 12m elevated water tank tower,for 49.3m³ steel tank reservoir on a 3.0m x 3.0m column bases . We design our towers with a suitable seismic and wind loads to relevant British Standards, when a constant pressure head of water is required for supply purposes, tanks are mounted on a steel tower at a suitable height. This file contains a full set of elevated steel tank tower with steel tank detailed drawings which includes general arrangement, single parts and assembly drawings, all these drawings are in DWG file format/AutoCAD. Packing list, bolt list and material list are part of the set, these drawings are professionally detailed, checked and ready for fabrication and site assembly.
